Outdoor Telecom Power Cabinet With 36kW MPPT Solar Power System
1. Introduction
ET7565205A-32U-36kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality solar power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet Features
- High protection grade: IP55
- Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
- Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
- Support remote management, improve security and minimize customer’s operation cost

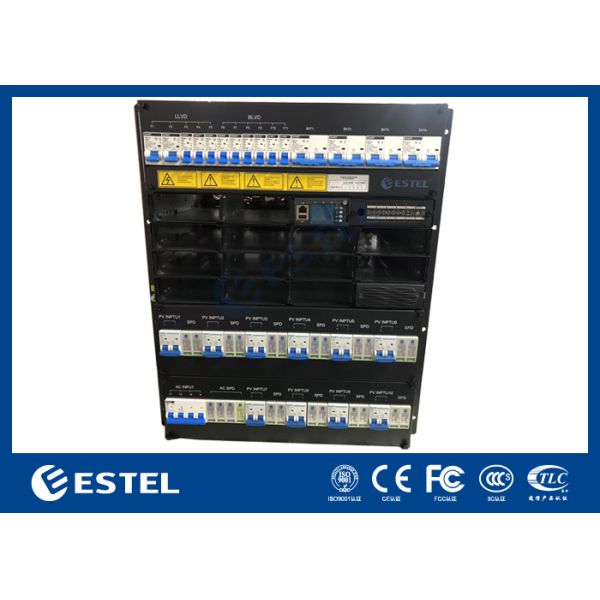

3. Rectifier Power System Features
- Power system capacity: 36kW, 12 MPPT modules + 1 monitoring module;
- Power system height: 12 rack units;
- Rectifier module specification: 3kW
- Monitoring module: support SNMP;
- Power distribution:
- LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;
- BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;
4. Cooling System Features
Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
5. Technical Parameters
| Configuration |
Item |
Technical Parameter |
| Cabinet |
Model |
ET7565205A-32U (32U/36kW) |
| Protection Level |
IP55 |
| External Dimension |
H 2050 mm×W 750 mm×D 650 m (Can be customized) |
| Internal Dimension |
19 inch 32U |
| Material |
Galvanized steel, 1.2 mm thickness, single wall. |
| Thickness of bearing parts: 2.0 mm |
| Insulation |
20mm PEF |
| Coating |
Polyester powder coating |
| Color |
RAL7035 |
| Lock |
Anti-theft three-point locking system |
| Hinge |
Inner hinge |
| Installation Options |
Floor mounted |
| Cable Routing |
Cable in and out from the bottom of cabinet |
| Maintenance |
one front door and one rear door |
| Cooling System |
Air conditioner |
1500W (Optional) |
| Fan |
2pcs fan with one fan controller |
| Input Voltage |
AC220V 60Hz |
| Door sensor |
Door sensor |
|
| Temper sensor |
Temper sensor |
|
| Rectifier system |
Rectifier system |
36kW, 19" rack mount, 12U Solar System: |
| 12pcs 3kW MPPT modules |
| 1x Monitoring Controller Module, SNMP communication port |
| Power distribution: |
| LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P |
| BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P |
| LED Lamp |
LED lamp for illumination with switch, Voltage: AC220V, 60Hz. |
| Environment |
Working Temperature |
-40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature |
-40℃~+70℃ |
| Working Humidity |
5%~95%(No condensation) |
| Working Altitude |
0~4000 meters |
